5T

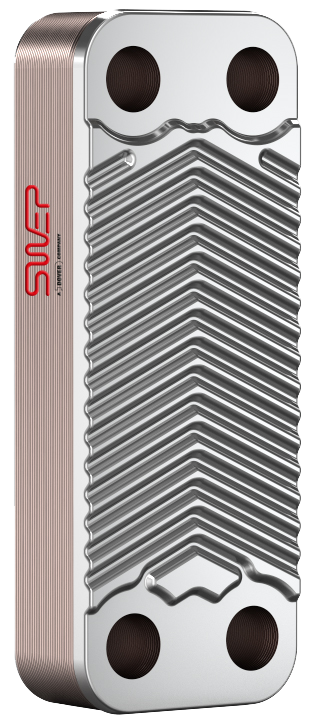

B5THx10/1P-SC-M 2x3/4"INT HEX+2x1/2"INT HEX

B 5T H 10 1P SC M
0135436.0
14627
10

Product Specifications

Details
B M
5T 14627
H 0.936
10 4
1P 0.096
SC - 316/316L stainless steel plates, copper brazing
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
193.0 26.4
76.0 6.2
154.0
40.0
Connections
F= Front side connections, P = Back side connections
Position Art Number Denomination Height (E) Material
F1, F3 45429 ISO-G 1/2" A INT HEX NON-CASTED 20 SS - 316/316L Stainless Steel
F2, F4 45411 ISO-G 3/4" A INT HEX 20 SS - 316/316L Stainless Steel
