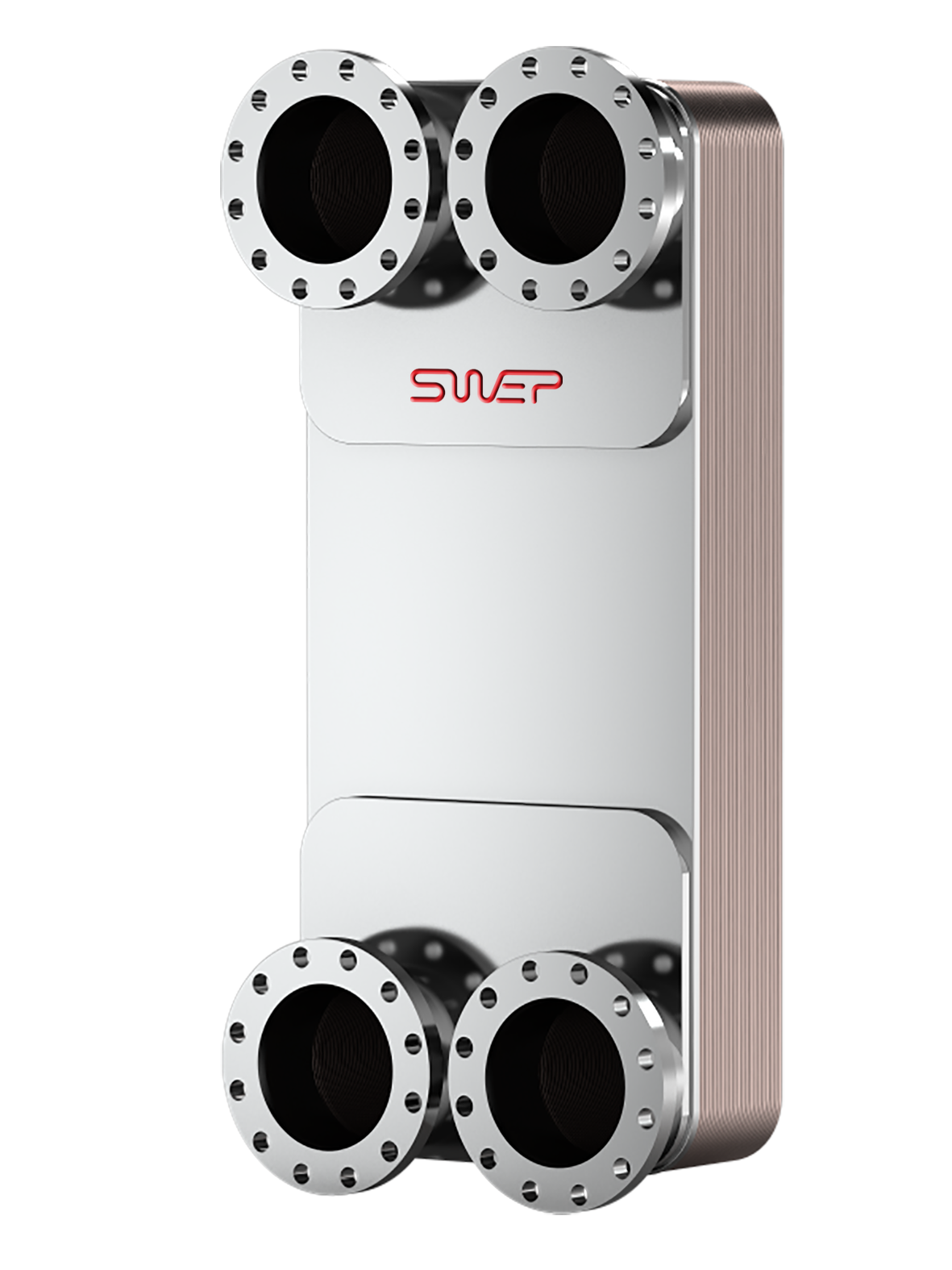

35T
B35TH0x60/1P-SC-S 4x2"
0203102.0
16196
60
Included Accessories
- STUDBOLT LOC F 35/35T/35TDW/315 4XM12X20 C140X100
Product Specifications
Details
| B | S | ||
| 35T | 16196 | ||
| H0 | 23.338 | ||
| 60 | 27 | ||
| 1P | 5.452 | ||
| SC - 316/316L stainless steel plates, copper brazing |
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
| 393.0 | 145.6 | ||
| 243.0 | 4.0 | ||
| 324.0 | |||
| 174.0 |
Connections
F= Front side connections, P = Back side connections
| Position | Art Number | Denomination | Height (E) | Material |
|---|---|---|---|---|
| F1, F2, F3, F4 | 45134 | ISO-G 2" A | 54 | SS - 316/316L Stainless Steel |
Included Accessories & Options
| Accessory Type | Side | Description |
|---|---|---|
| Welding Bolt | F | STUDBOLT LOC F 35/35T/35TDW/315 4XM12X20 C140X100 |
